-3%

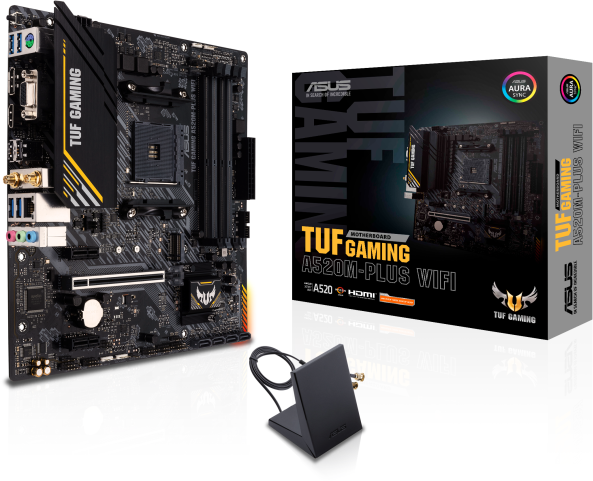

Motherboard ASUS A520 PLUS WIFI+BLUETOOTH AMD4 RZYEN

Availability:

En stock


Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
Refrigeración completa: Gran disipador de calor VRM, disipador de calor PCH, Fan Xpert 2+.
Conectividad ultrarrápida: Dual M.2, PCIe 4.0, Ethernet de 1 Gb, USB 3.2 Gen 2 Tipo-A.
Hecha para juegos en línea: Tecnología Wi-Fi 802.11ac, TUF LANGuard y TurboLAN.
Aura Sync RGB: Puertos RGB integrados y puertos Gen 2 direccionables para tiras de LED RGB, que se sincronizan fácilmente con hardware compatible con Aura Sync.

$145.00 $150.00

En stock

1902 Numero de Vistas

Model
TUF GAMING A520M-PLUS WIFI
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.
* Refer to www.asus.com for CPU support list
*Refer to www.asus.com for CPU support list.

Chipset
A520
Memoria
Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB

4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

*ECC Memory (ECC mode) support varies by CPU.

*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Gráficos
1 x D-Sub
1 x HDMI® port***
1 x DisplayPort 1.2

1 x HDMITM 2.1(4K@60Hz)

1 x D-Sub

*Graphics specifications may vary between CPU types.

Ranuras de expansión
1 x PCIe 3.0 x16 (x16 mode)
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots

Almacenamiento
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD A520 Chipset

4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Ethernet
1 x Realtek 1Gb Ethernet
TUF LANGuard
1 x Realtek 1Gb Ethernet

TUF LANGuard

Wireless y Bluetooth
Realtek Wi-Fi 5 8821CE

1×1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO

Supports dual frequency band 2.4/5GHz

Supports channel bandwidth: HT20/HT40/HT80

Bluetooth v5.0

USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio
ALC887/897

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

– Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback”

Audio Features

– Audio Shielding

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Puertos E/S traseros
4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x D-Sub

1 x ASUS Wi-Fi Module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port
Puertos internos
Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 3 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header

neous2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header
